    Container Houses

Product Parameters

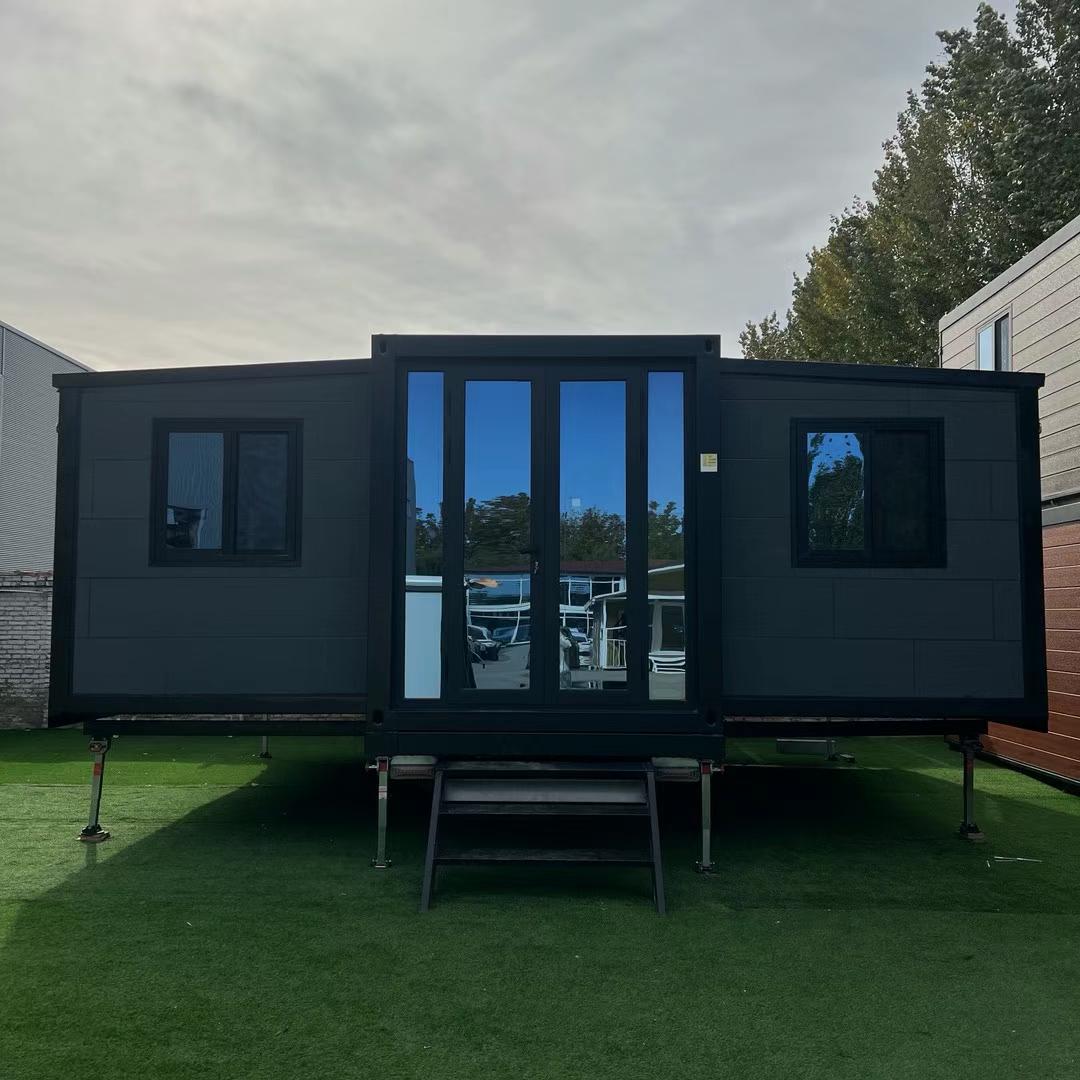

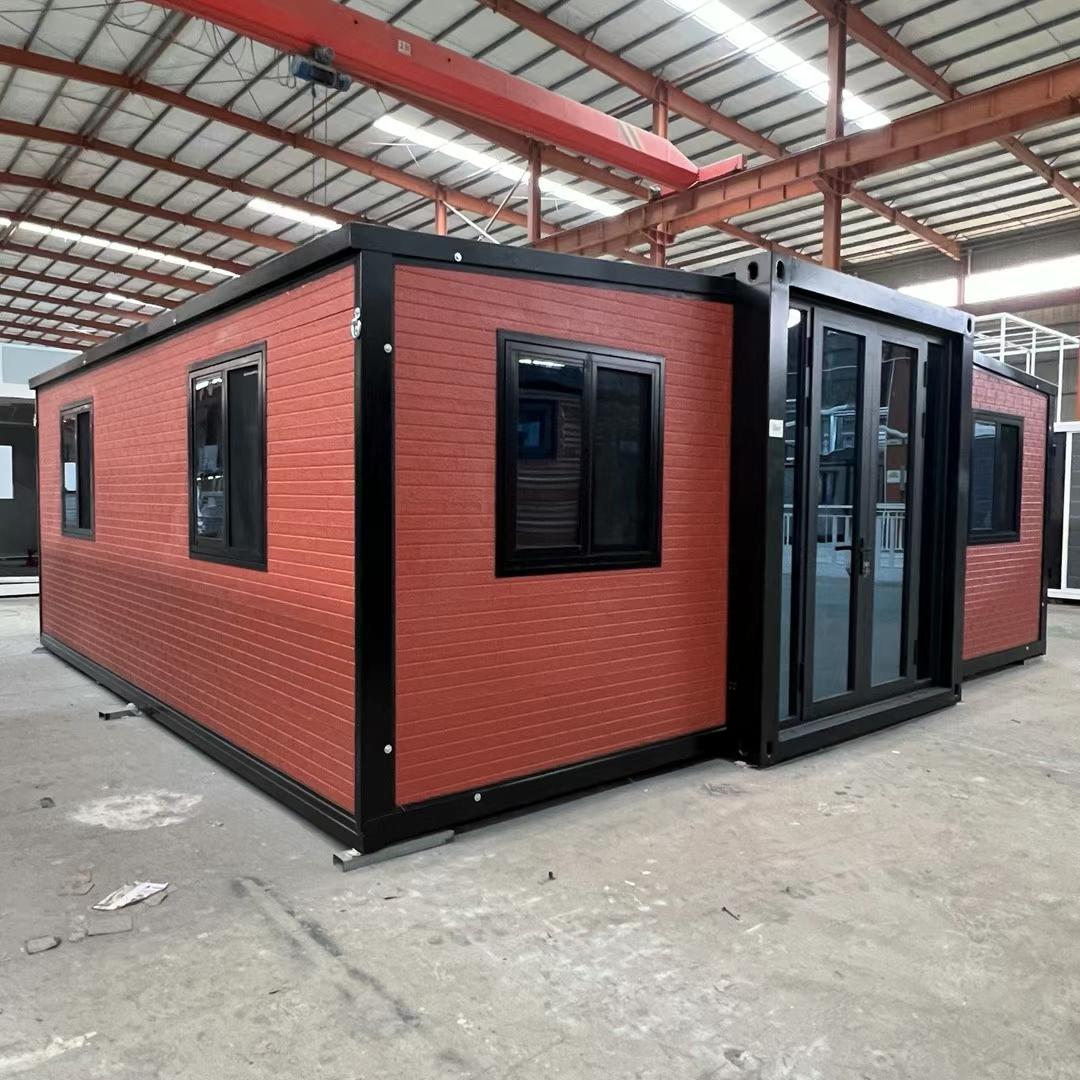

20ft expandable container high-end configuration
(2 sets per 40ft HQ container)
Extended dimensionsL5900*W6300*H2480Internal dimensionsL5620*W6140*H2140
Folded dimensionsL5900*W2200*H2480Footprint37㎡
Thermal performance0.048 W/m·KWind resistance0.60kN/m²
Acoustic performanceSound insulation ≥30dBFire resistanceB1 level
Waterproof performanceWater leakage resistance (16mm/min precipitation)Seismic performance8 level
Floor live load2.0kN/m²Roof live load0.9kN/W²
Frame Structure
No.NameItemSpecification
1Main Frame (Fully Galvanized)Main BeamP-shape tube 40*80*1.5mm
square tube80*100*2.5mm
square tube40*80*1.5mm
square tube60*80*2.0mm
square tube60*60*2.0mm
2Secondary Beamsquare tube40*80*1.5mm
square tube40*60*1.2mm
square tube30*30*1.0mm
3Steel Column2.5mm Bend Part
4Side Frame (Fully Galvanized)Main BeamP-shape tube40*80*1.5mm
square tube40*80*1.5mm
square tube60*80*2.0mm
5Secondary Beamsquare tube40*80*1.5mm
6Folding Hinge13mm Galvanized Hinge (Recessed)
7Overall Frame ColorWhiteElectrostatic Spray Coating
8RoofExternal Roof Panel50mm EPS Composite Panel
9Main Container RoofCorrugated Panel0.4mm White Coping Tile
10Wall Panel
Interior Wall Panels (4 sides)50mm EPS Flat Composite Panel
11Floor Panel
Main Frame18mm Cement Board
12Wing Sections18mm Bamboo Plywood
13Floor Finishing
Main Frame1.6mm PVC Flooring
14Wing Sections1.6mm PVC Flooring
15Doors & Windows
PVC Sliding Window920mm×920mm (4 units)
16Security DoorSteel Security Door (1200×2035,)
17Electrical System (Premium Configuration)
Circuit Breaker System32A Leakage Protector (220V, 50Hz)
18LightingSquare Ceiling Light (4 units), Round Light (2 units)
19Power Outlet3-Pin Socket (3 units), 5-Pin Socket (8 units)
20Light SwitchSwitch (2 units)
21WiringWiring:
Main Inlet: 6mm²
AC Outlet: 4mm²
Standard Outlet: 2.5mm²
Lighting: 1.5mm²**
Easy Folding, exclusively high-end
Optional Materials Configuration:Decorative trims (PVC skirting, vertical strips, internal folded parts, top folded parts)
Doors
Windows
Wall materials
Bathroom
Kitchen cabinets
Flooring
Interior decoration
Exterior decoration
Terrace
Roof

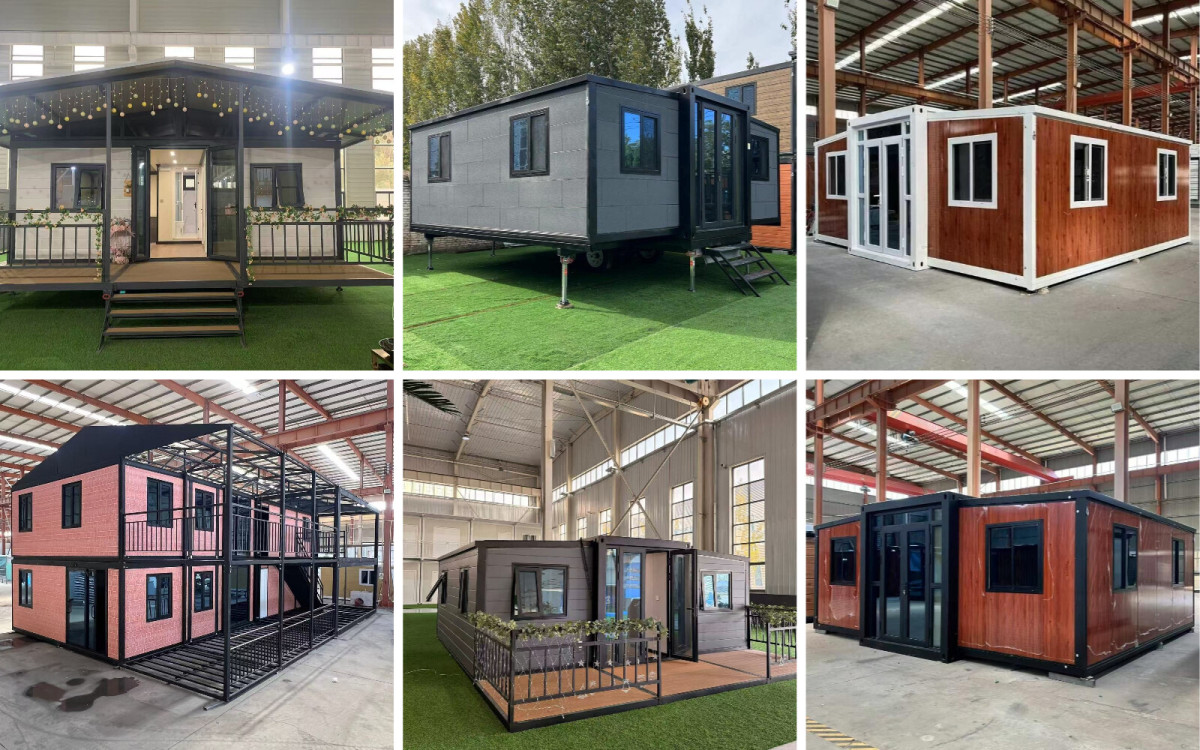

Product Display

下载 (34)

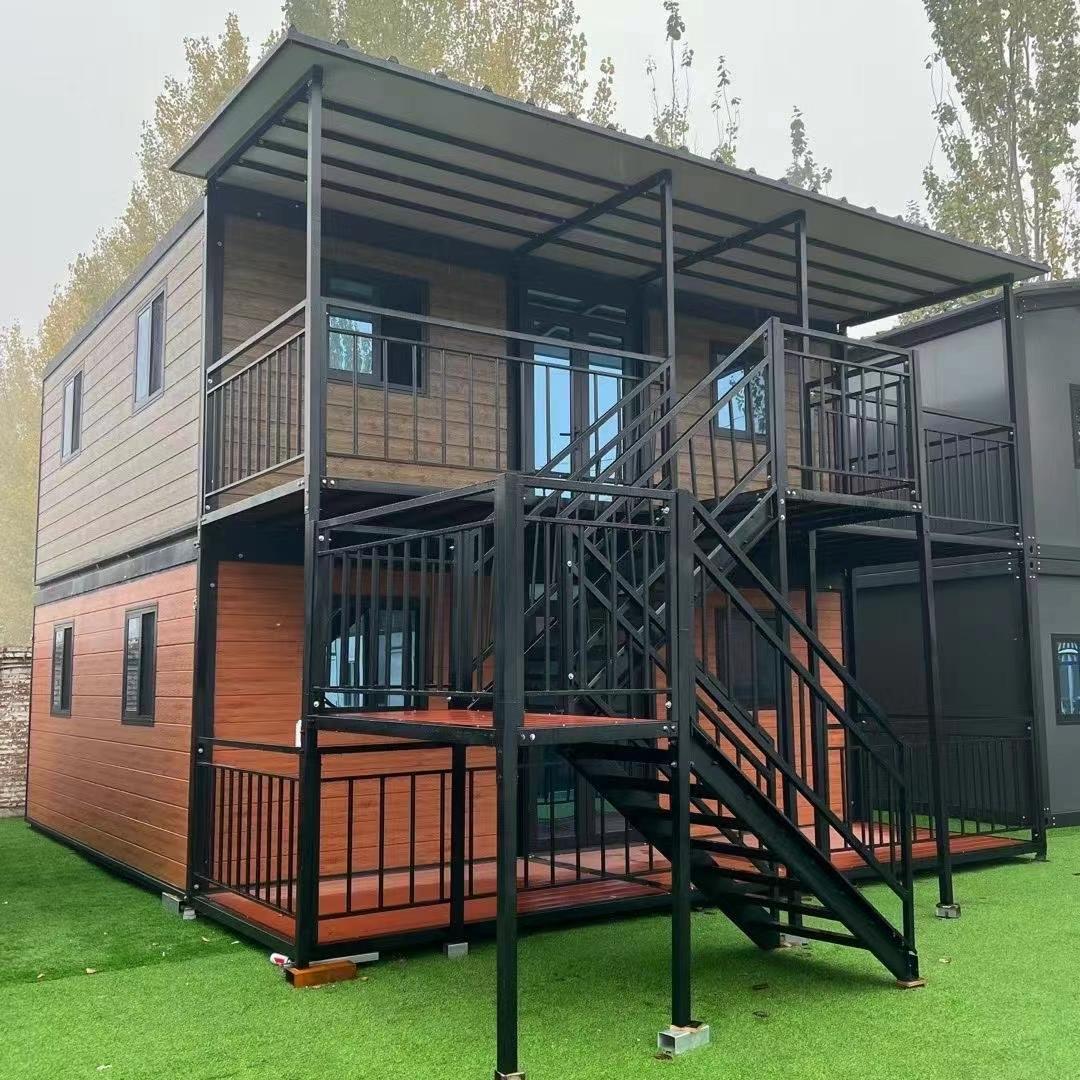

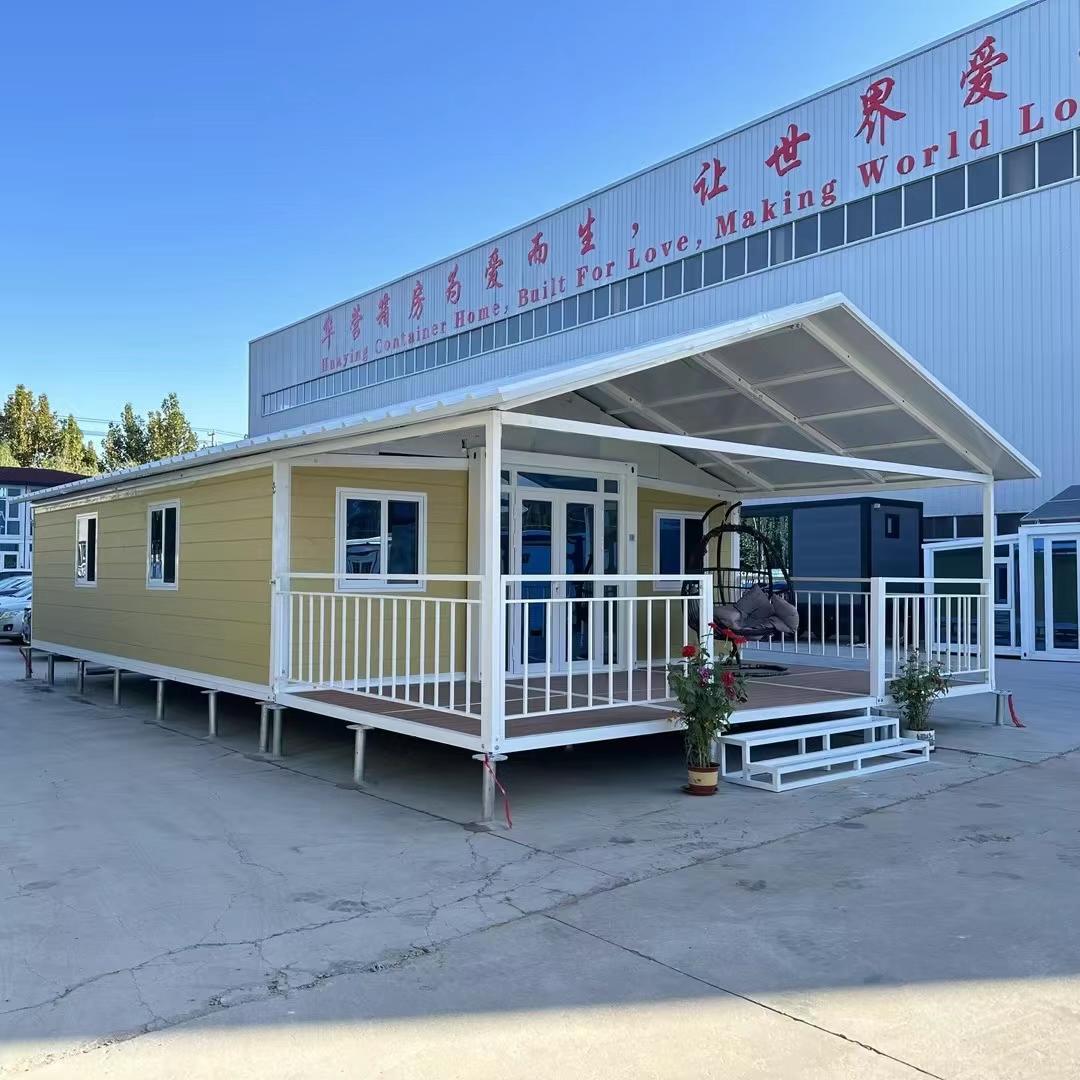

Case Showcase

  • 太空舱 (25)
  • 太空舱 (9)
  • 太空舱 (22)
  • 太空舱 (1)
  • ae0b9721930e811b55976515d77829fd
  • 576884490232001d57e4e745d54f2f95
  • a9eb7bf396dcae6421862154e4385ea8
  • 苹果舱 (5)
  • 苹果舱 (2)
  • 苹果舱 (2)
  • 8c5d91d3799199d548e3da4d0a053183
  • 微信图片_20250425112514_352

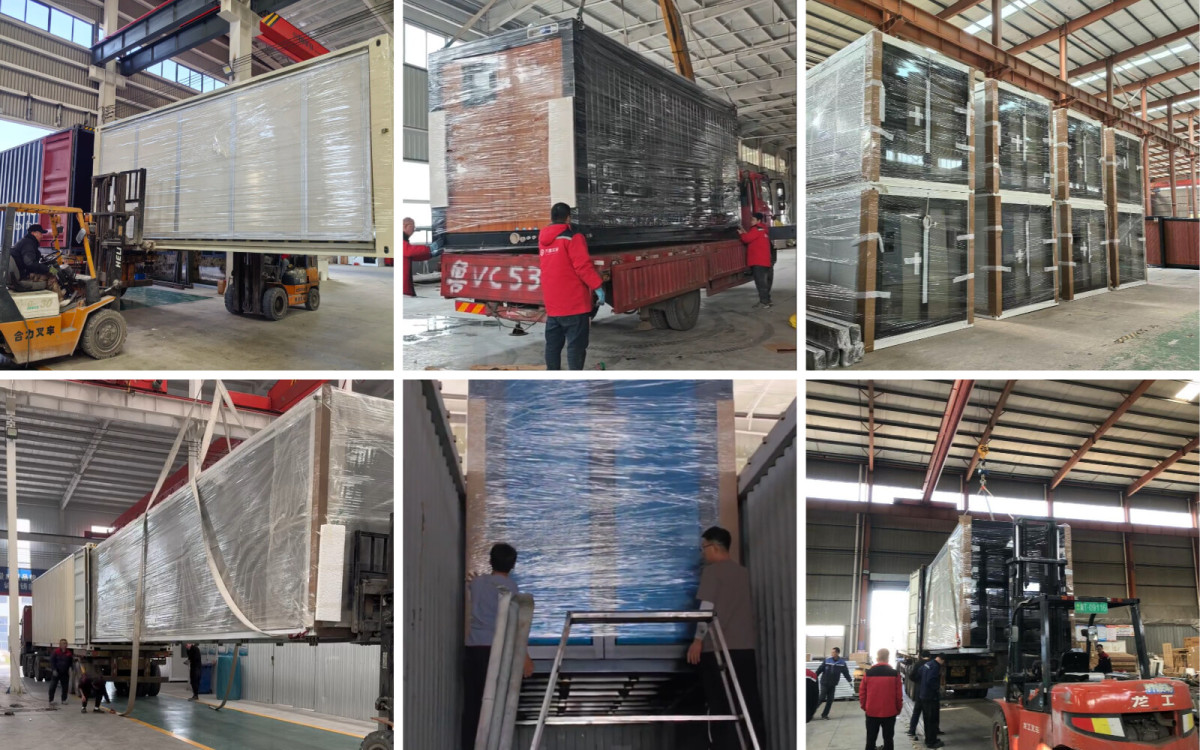

Product Packaging

Packaging solution:
Internal reinforcement: Use wooden or steel frames to fix the goods, and install anti-collision foam/rubber pads in the corners.
Moisture-proof treatment: Apply moisture-proof film inside the container and place desiccant (moisture-sensitive goods).
Packing optimization: Calculate the optimal placement through 3D loading software to reduce gaps.
Transportation method:
Sea transportation: Container ship transportation, which needs to be tied and fixed to prevent bumps and shifts.
Intermodal transportation: Combine truck/rail transportation to ensure smooth lifting during transfer.

双翼扩展包装运输

未标题-1

Certificate Of Honor

Behind every certificate of honor is the hard work and persistence of the corporate team, and is a testimony to the company's continuous innovation and pursuit of excellence. We cherish this recognition and will use it as a driving force to continue to provide customers with better products and services and create more value for society.

Customer Testimonials

At Gangte Prefab House, we pride ourselves on providing comprehensive services, from design and production to installation and after - sales support. Our professional team of engineers and technicians works closely with clients worldwide to understand their specific needs and deliver tailor - made solutions. We adhere to strict quality control processes and strive to exceed customer expectations in every project.​

  • 微信图片_20250617151641
  • 微信图片_20250617151701
  • 微信图片_20250617151657

Factory Showcase

  • 1723516009681809319575339008
  • 1722330248676835877096534016
  • 1722330245676835864966606848
  • 1722330242676835852882817024
  • 1722330240676835845152714752
  • 1722330238676835837418418176
  • 1723516010681809326630158336
  • 1722330235676835825322033152

FAQ

Q:Is it difficult to build a prefab house?
A:It is very easy to install, installation video and guide book will be send to you demonstrating the steps for installation. Or an engineer or installation team can be arranged on site.

Q:How do you guarantee the quality of the products?
A:100% strict quality check before shipping and delivery. And you are welcome to come to our factory for inspection. Inspection can be carried out at any time during production or before packaging.

Q:Do you offer designing service?
A:Yes, We could design full solution drawings as your requirements.

Q:How long is your delivery time?
A:Normal order delivery time is 2-30 days after receive deposit.

Q:How can I get the quotation for the project?
A:If you have drawings, we can offer you our quotation according to your drawing. If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.

Q:How to get a fast quotation?
A:With the following information; container or structure type, size and area, materials and finishes of roof, ceiling, walls and floors, other specific requests, we will then offer a quotation accordingly.
For fixed or standard products (for example portable toilets, expandable containers, domes etc.), we will provide quotation within 10 minutes upon receiving your inquiries.

Q:Can you help to provide purchase and install the interior appliances?
A:Sure, we can help provide and purchase some appliances if any needs. Such as air conditioning, refrigerator, dishwasher etc. And we can ship it together with the container houses for you.

Q:What is the difference between a cabin and a container?
A:A cabin is a lightweight structure that is often used for a home-stay, kiosk, site office, worker stay and etc.
A container, on the other hand, is a more solid heavy-duty structure that is typically used for storage.

Q:What are the benefits of a cabin and a container?
A:For areas short on space, both cabin and container are versatile options. Perfect for temporary solutions, they easily accommodate a variety of needs. Whether the purpose is to source immediate storage capabilities or provide an onsite workspace, cabins and containers are ideal solutions that offer many advantages.
