    Container Houses

Product Parameters

High-End Folding Container Configuration Sheet
(Premium Model 6055×2990×2896mm)
No.ItemDescription
2.2mm  Bottom Frame (160mm height)4 large lifting lugs, galvanized beams:
L=5583mm × 2 pcs
L=2688mm × 2 pcs
Bottom galvanized square tubes (50×100×1.0mm): 9 pcs
Floor material: 18mm calcium silicate board × 5 sheets
1.6mm thick PVC flooring (18㎡)
Top Frame (170mm height)
1.6mm thick PVC flooring (18㎡)
Secondary roof beams (80×40×1.0mm): 7 pcs
Galvanized square tubes (30×30×1.0mm): 5 pcs
Galvanized square tubes (20×20×1.0mm): 2 pcs
75mm fiberglass wool insulation
0.45mm color steel cladding sheet
831 color steel ceiling tile (0.3mm thick)
Sliding tracks (heavy-duty 2.0mm): 4 pcs
Vertical Columns (150×210mm)
Galvanized columns L=2526mm ×4 pcs, with reinforced connecting locks and hex socket bolts (14×30mm)
24-Sided Wall Panels
Steel security frame door, 0.45mm thickness, size 970×1970mm
PVC sliding window 950×1130mm, single-glazed single-slide type with screen
50mm rock wool composite panel, double-sided 0.3mm steel sheet, density 80KG/m³, double orange-peel texture, single-sided film laminated
3Accessory Materials
Ø50mm PVC downpipe ×4 pcs
50mm galvanized folded flashing 1.2mm thickness ×60m
Internal corner trim ×4 pcs (0.45mm thickness)
4Assembly kit: screws, adhesives, pulleys and mounting accessories ×1 set
Premium Electrical Configuration (3-core sheathed copper cable)
Electrical System Components (Industrial Grade):
Industrial Socket Outlet + 32A Industrial Socket
Chint Distribution Box (Includes: 1 ELCB + 3 MCBs)
5-Pin Combo Sockets ×3 units
3-Pin AC Outlet ×1 (Dedicated for air conditioner)
Single-Gang Switch ×1
60W LED Linear Light Fixture ×1
Wiring Specifications:
Main Power Line: 6mm² copper cable
AC Circuit: 4mm² copper cable
General Socket Circuits: 2.5mm² copper cable
Lighting Circuit: 1.5mm² copper cable
550mm wall panel: Folded height 57cm, 14 sets per 17.5m truck.
75mm wall panel: Folded height 67cm, 11 sets per 17.5m truck.
EXW Price:
50mm wall panel: CNY 7,000 (This quotation excludes tax, transportation, installation, and crane fees)
Upgrade to equivalent-quality 75mm wall panel: Additional CNY 800 (This quotation excludes tax, transportation, installation, and crane fees)

Product Display

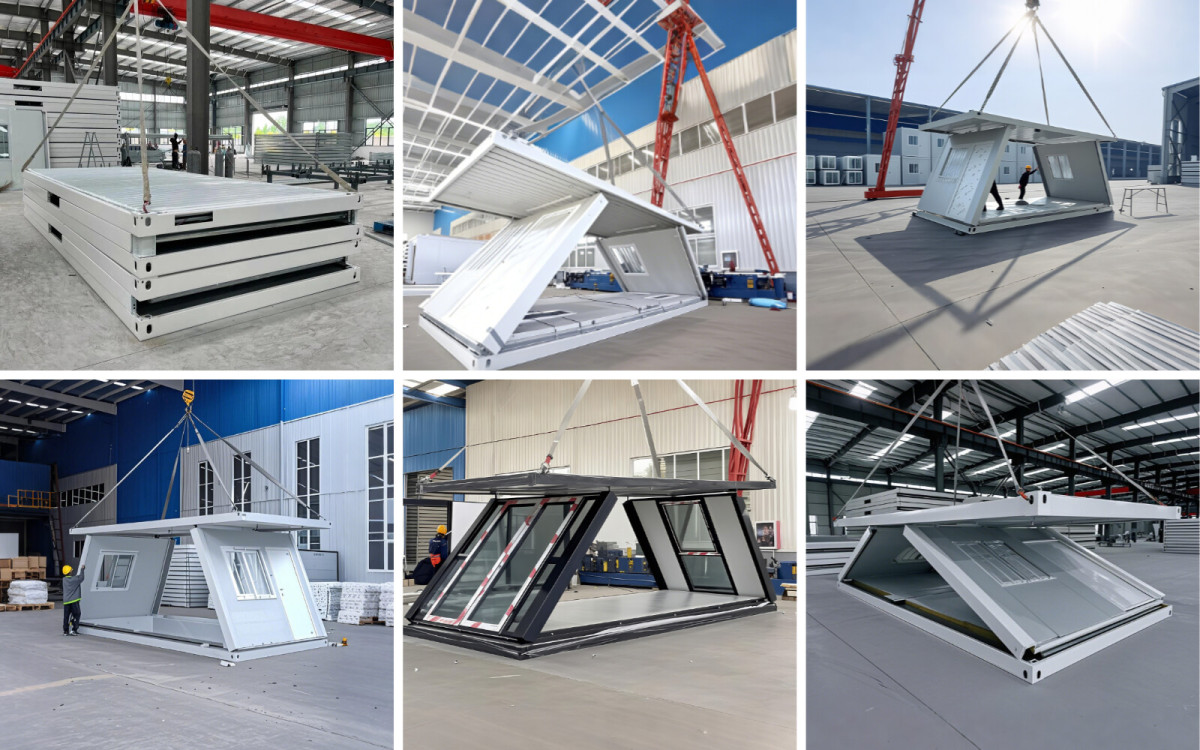

折叠房-z字

Case Showcase

  • 太空舱 (25)
  • 太空舱 (9)
  • 太空舱 (22)
  • 太空舱 (1)
  • ae0b9721930e811b55976515d77829fd
  • 576884490232001d57e4e745d54f2f95
  • a9eb7bf396dcae6421862154e4385ea8
  • 苹果舱 (5)
  • 苹果舱 (2)
  • 苹果舱 (2)
  • 8c5d91d3799199d548e3da4d0a053183
  • 微信图片_20250425112514_352

Product Packaging

Packaging solution:
Internal reinforcement: Use wooden or steel frames to fix the goods, and install anti-collision foam/rubber pads in the corners.
Moisture-proof treatment: Apply moisture-proof film inside the container and place desiccant (moisture-sensitive goods).
Packing optimization: Calculate the optimal placement through 3D loading software to reduce gaps.
Transportation method:
Sea transportation: Container ship transportation, which needs to be tied and fixed to prevent bumps and shifts.
Intermodal transportation: Combine truck/rail transportation to ensure smooth lifting during transfer.

折叠房

未标题-1

Certificate Of Honor

Behind every certificate of honor is the hard work and persistence of the corporate team, and is a testimony to the company's continuous innovation and pursuit of excellence. We cherish this recognition and will use it as a driving force to continue to provide customers with better products and services and create more value for society.

Customer Testimonials

At Gangte Prefab House, we pride ourselves on providing comprehensive services, from design and production to installation and after - sales support. Our professional team of engineers and technicians works closely with clients worldwide to understand their specific needs and deliver tailor - made solutions. We adhere to strict quality control processes and strive to exceed customer expectations in every project.​

  • 微信图片_20250617151641
  • 微信图片_20250617151701
  • 微信图片_20250617151657

Factory Showcase

  • 1723516009681809319575339008
  • 1722330248676835877096534016
  • 1722330245676835864966606848
  • 1722330242676835852882817024
  • 1722330240676835845152714752
  • 1722330238676835837418418176
  • 1723516010681809326630158336
  • 1722330235676835825322033152

FAQ

Q:Is it difficult to build a prefab house?
A:It is very easy to install, installation video and guide book will be send to you demonstrating the steps for installation. Or an engineer or installation team can be arranged on site.

Q:How do you guarantee the quality of the products?
A:100% strict quality check before shipping and delivery. And you are welcome to come to our factory for inspection. Inspection can be carried out at any time during production or before packaging.

Q:Do you offer designing service?
A:Yes, We could design full solution drawings as your requirements.

Q:How long is your delivery time?
A:Normal order delivery time is 2-30 days after receive deposit.

Q:How can I get the quotation for the project?
A:If you have drawings, we can offer you our quotation according to your drawing. If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.

Q:How to get a fast quotation?
A:With the following information; container or structure type, size and area, materials and finishes of roof, ceiling, walls and floors, other specific requests, we will then offer a quotation accordingly.
For fixed or standard products (for example portable toilets, expandable containers, domes etc.), we will provide quotation within 10 minutes upon receiving your inquiries.

Q:Can you help to provide purchase and install the interior appliances?
A:Sure, we can help provide and purchase some appliances if any needs. Such as air conditioning, refrigerator, dishwasher etc. And we can ship it together with the container houses for you.

Q:What is the difference between a cabin and a container?
A:A cabin is a lightweight structure that is often used for a home-stay, kiosk, site office, worker stay and etc.
A container, on the other hand, is a more solid heavy-duty structure that is typically used for storage.

Q:What are the benefits of a cabin and a container?
A:For areas short on space, both cabin and container are versatile options. Perfect for temporary solutions, they easily accommodate a variety of needs. Whether the purpose is to source immediate storage capabilities or provide an onsite workspace, cabins and containers are ideal solutions that offer many advantages.
